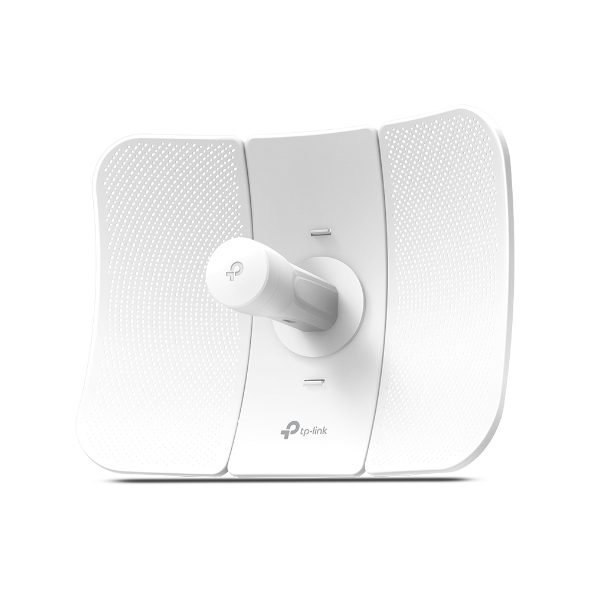

TP-Link CPE 5GHz 300Mbps 23dBi Outdoor CPE – TL-CPE610

TP-Link CPE610 | 5GHz 300Mbps 23dBi Outdoor CPE is a high-gain, directional outdoor wireless bridge designed for long-distance point-to-point and point-to-multipoint connections. Featuring advanced Pharos MAXtream TDMA technology and centralized management, it’s ideal for ISPs, surveillance networks, and remote connectivity in rural and enterprise environments.

Key Features

• 23dBi Directional Antenna: Ultra-high-gain 2×2 MIMO 23dBi antenna delivers stable long-range wireless connections with excellent directional focus.
• Robust Outdoor Design: Weatherproof IP65-rated housing with industrial-grade hardware for reliable performance in extreme outdoor conditions.
• TP-Link MAXtream TDMA: Enhances network performance in PTMP setups by reducing latency and increasing throughput.
• Multiple Operation Modes: Functions as AP, Client, AP Router, or WISP Client Router for versatile deployments.
• Easy Installation: Comes with a flexible pole-mount kit and a free alignment tool for optimal signal direction.
• Passive PoE Support: Allows power and data transmission over a single Ethernet cable up to 60m for simplified installation.

Specifications

• Model: TL-CPE610
• Wireless Standards: IEEE 802.11a/n
• Frequency: 5.15 – 5.85 GHz (varies by region)
• Wireless Speed: Up to 300Mbps (5GHz only)
• Antenna: 23dBi high-gain directional antenna
  • Beamwidth: 7° (H-Plane) / 9° (E-Plane)
• Transmit Power: Adjustable up to 27dBm (500mW)
• Processor: Qualcomm Atheros 560MHz CPU, MIPS 74Kc
• Memory: 64MB DDR2 RAM, 8MB Flash
• Interface:
  • 1 × 10/100Mbps Shielded Ethernet Port (Passive PoE in)
  • 1 × Grounding Terminal
  • 1 × Reset Button
• Power Supply:
  • Passive PoE (pins +4,5 / -7,8)
  • Voltage: 16–27V DC
  • Max Consumption: 10.5W
• Enclosure: IP65-rated weatherproof plastic, UV-resistant
• Lightning Protection: 15KV ESD, 6KV Lightning
• Mounting: Pole mount included
• Dimensions: 320 × 207 × 367 mm

Software Features

• Operating Modes: AP / Client / AP Router / WISP Client Router
• Security: WPA/WPA2, WPA-PSK/WPA2-PSK, 64/128/152-bit WEP
• Advanced Wireless:
  • MAXtream TDMA
  • Distance/ACK Timeout Setting
  • Channel Width Control (5/10/20/40MHz)
  • SSID Broadcast and Multi-SSID with VLAN
• Management:
  • Pharos Control centralized software
  • Web-based GUI
  • SNMP v2c
  • System logs, ping, traceroute
• Monitoring Tools:
  • Signal Strength Indicator
  • Spectrum Analyzer
  • Speed Test
  • Throughput Monitor

Common FAQs

• Is the CPE610 suitable for long-distance bridging?
  Yes, it’s designed specifically for high-performance long-range wireless links.
• Can I manage it remotely?
  Yes, via the Pharos Control centralized software or web-based interface.
• Does it support PoE?
  Yes, it uses a Passive PoE adapter and supports up to 60 meters of cabling.
• Is it durable for outdoor use?
  Absolutely. It has a weatherproof IP65-rated enclosure with strong environmental protection.

Shop for the Latest TP-Link Outdoor CPE Devices in Kenya at TDK Solutions — your trusted TP-Link Networking Shop in Kenya for high-gain long-range solutions, expert support, competitive prices, and fast delivery. Take your wireless coverage further with the TP-Link CPE610!
