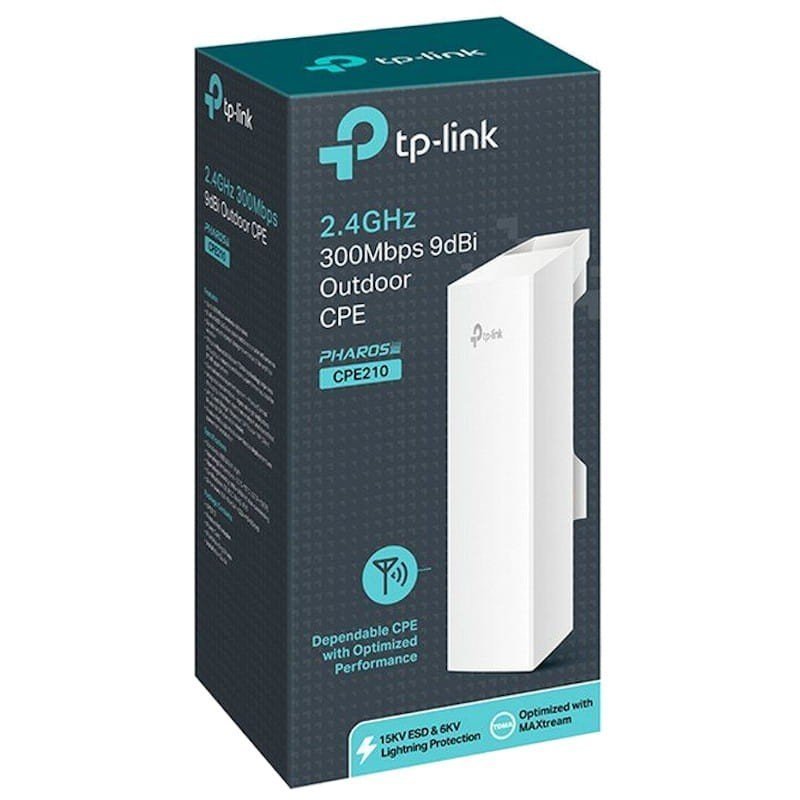

TP-Link 2.4GHz 300Mbps 9dBi Outdoor CPE 210

TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE is a high-power outdoor wireless bridge solution engineered for long-range point-to-point or point-to-multipoint setups. Designed for WISPs and rural deployments, it combines powerful performance, wide coverage, and robust outdoor protection — all while being managed through TP-Link’s intuitive Pharos Control system.

Key Features

• Long-Range Wireless Transmission: Supports over 5km transmission distance thanks to a built-in 9dBi 2×2 directional dual-polarized MIMO antenna and high 25dBm transmit power.
• Pharos MAXtream TDMA Technology: Enhances throughput, latency, and scalability, especially for PTMP deployments.
• Multiple Operation Modes: Works as AP, Client, AP Router, or AP Client Router (WISP) for flexible outdoor wireless deployment.
• Centralized Management: Controlled via Pharos Control Software for remote management, monitoring, and firmware upgrades.
• Passive PoE Support: Includes a PoE adapter supporting up to 60m cable run, and remote reset functionality.
• Outdoor-Grade Durability: Features IPX5-rated enclosure, 15kV ESD, and 6kV lightning protection for all-weather performance.

Specifications

Hardware:

• Processor: Qualcomm Atheros 560MHz MIPS 74Kc CPU
• Memory: 64MB DDR2 RAM, 8MB Flash
• Ethernet Ports: 1 × 10/100Mbps Shielded LAN (Passive PoE)
• Power Input: Passive PoE 24V (16–27V DC)
• Max Power Consumption: 5W
• Enclosure: Outdoor ASA stabilized plastic, IPX5 waterproof
• Dimensions: 224 × 79 × 60 mm
• Weight: Light and pole-mountable

Antenna:

• Type: 9dBi Dual-Polarized Directional
• Beamwidth: 65° (H) / 40° (V)

Wireless:

• Standards: IEEE 802.11b/g/n (or proprietary TDMA with MAXtream)
• Frequency: 2.4 – 2.483 GHz
• Data Rates: Up to 300 Mbps (40MHz), with 5/10/20/40 MHz selectable channel widths
• Transmit Power: Up to 25 dBm (adjustable)
• Security: WPA/WPA2, WEP, WPA-PSK/WPA2-PSK (AES/TKIP), SSID broadcast control, MAC filtering

Software & Management:

• Modes: AP, Client, AP Router, AP Client Router (WISP)
• VLAN Tagging, Distance Settings, QoS
• Management: Web UI (HTTP/HTTPS), Pharos Control, SNMP, SSH
• Monitoring Tools: Spectrum Analyzer, Signal Strength, Speed Test, System Logs, Ping, Traceroute

PoE Adapter:

• Input: 100–240V AC, 50/60Hz
• Output: 24V DC
• Ports: 2 x 10/100Mbps shielded (Power+Data, Data only)
• Features: Remote Reset Button, LED Indicators
• Range: Supports up to 60m PoE cable run

Common FAQs

• Is CPE210 suitable for long-distance Wi-Fi?
  Yes, it supports line-of-sight transmission over 5km with stable performance.
• Can I use this for outdoor surveillance camera backhaul?
  Absolutely — it’s perfect for long-range wireless backhaul in security setups.
• Does it support PoE?
  Yes, Passive PoE up to 60 meters is supported and the injector is included.
• What kind of security does it support?
  It offers enterprise-grade encryption including WPA/WPA2, WPA-PSK/WPA2-PSK, and MAC filtering.
• Can I manage multiple units centrally?
  Yes, via TP-Link’s Pharos Control Software.
