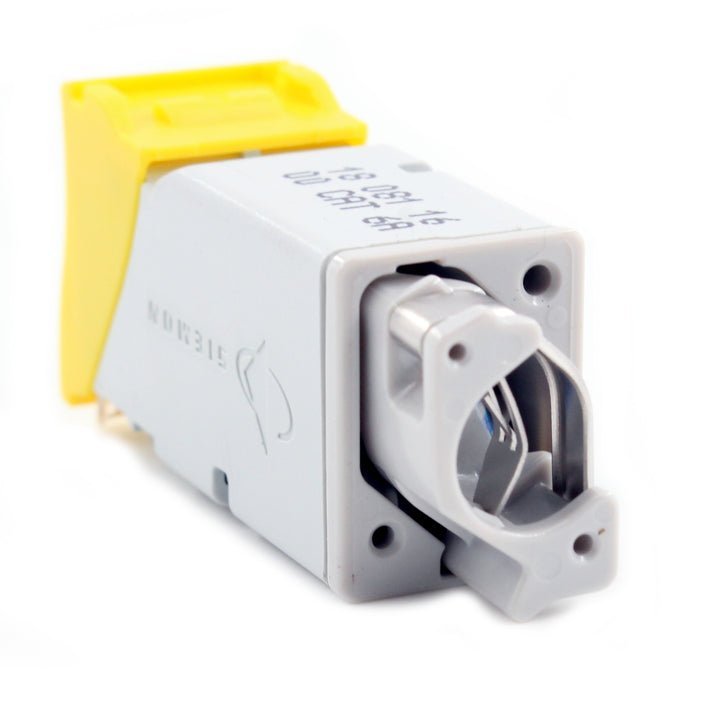

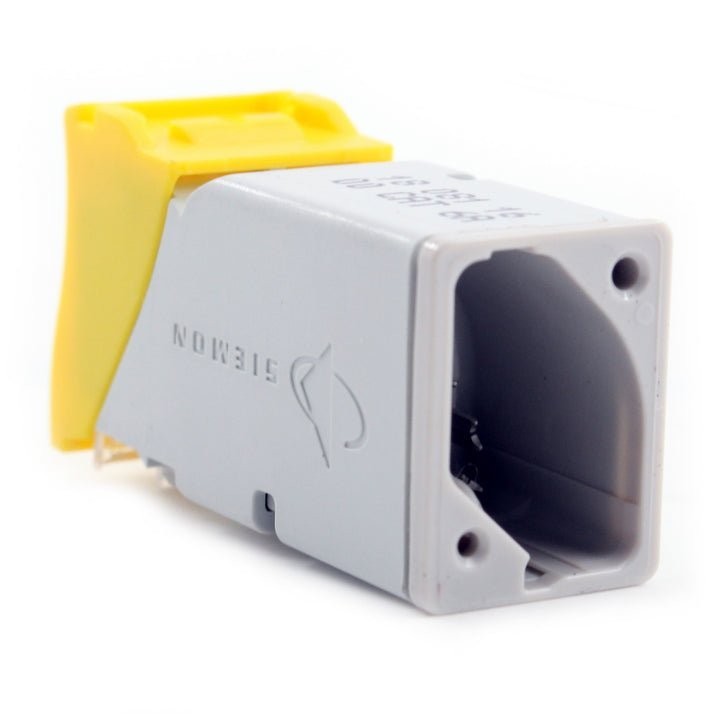

Siemon Z-MAX Category 6A Outlet Module (Cat 6A Z-MAX Jack)

Siemon Z-MAX Category 6A Outlet Module is a high-performance connector solution designed for 10 Gigabit Ethernet (10GBASE-T) applications and beyond. It is part of Siemon’s advanced Z-MAX cabling system, which ensures exceptional performance, reliability, and easy installation for structured cabling networks.

Engineered to support Category 6A performance requirements, the Z-MAX module delivers guaranteed compliance with TIA and ISO/IEC standards, making it ideal for data centers, enterprise networks, and high-bandwidth environments where speed and signal integrity are critical.

Siemon offers the Z-MAX outlet module in two main types:

• Shielded (F/UTP or S/FTP) → Provides protection against electromagnetic interference (EMI) and crosstalk. Perfect for high-noise industrial or data center environments.
• Unshielded (UTP) → Suitable for typical office and enterprise cabling where shielding is not essential.

Key Features

• Category 6A Compliance → Fully compliant with TIA-568 and ISO/IEC 11801 standards, ensuring reliable 10Gbps data transmission.
• Compact Design → Slim-profile design allows easy installation in high-density environments.
• Quick & Reliable Termination → Siemon’s Z-MAX modules feature an intuitive termination process that reduces installation time and ensures consistent, high-quality connections.
• Shielded & Unshielded Options → Available in shielded (for high EMI environments) and unshielded (for standard LAN installations).
• Future-Ready → Built to support next-generation applications such as cloud computing, high-definition video, and virtualized environments.
• Backward Compatibility → Works seamlessly with existing Cat 6 and Cat 5e cabling infrastructure.

Specifications

• Brand: Siemon
• Model: Z-MAX Category 6A Outlet Module
• Performance: Supports 10GBASE-T Ethernet over 100m channel
• Type: Shielded (F/UTP or S/FTP) or Unshielded (UTP)
• Standards Compliance: TIA-568-C.2, ISO/IEC 11801, IEEE 802.3an (10GBASE-T)
• Connector Type: RJ-45 (8P8C)
• Durability: Minimum 750 mating cycles
• Installation: Tool-less termination or standard punch-down depending on variant
• Compatibility: Works with Siemon faceplates, patch panels, and modular furniture adapters
• Applications: Data centers, enterprise LANs, high-bandwidth workstations, and backbone cabling
