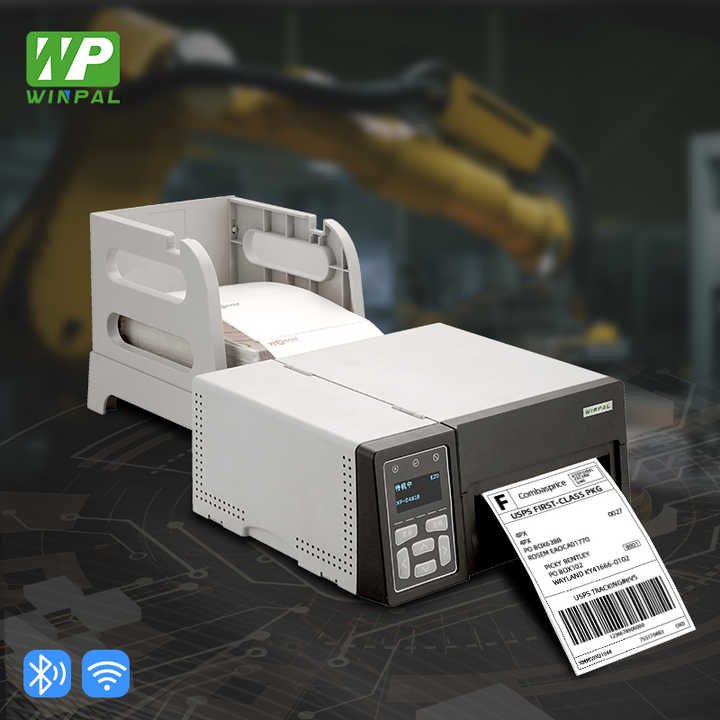

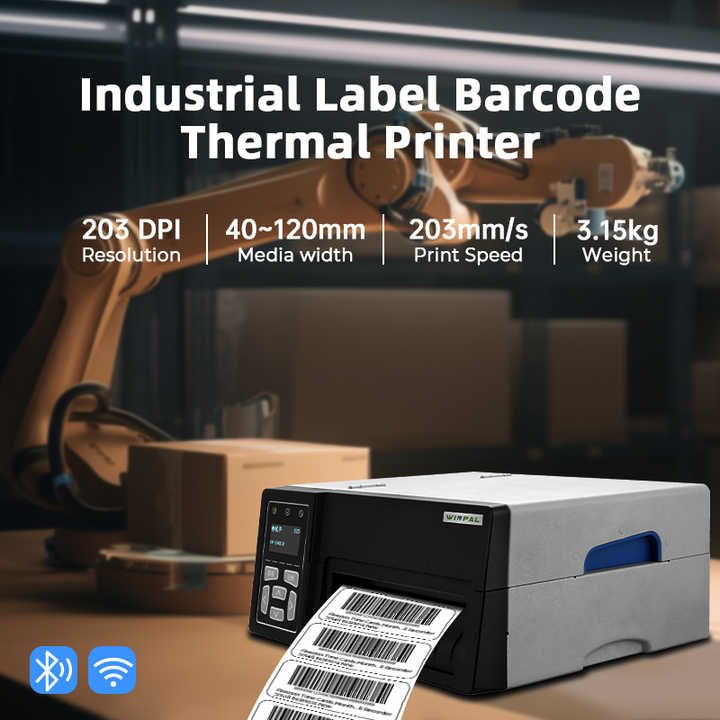

Industrial Thermal Label Barcode Printer

Winpal WP-S2 is a compact yet powerful 203 DPI industrial thermal barcode printer designed for high-volume barcode and label printing in logistics, warehousing, retail, and manufacturing environments. Featuring a direct thermal print method, it delivers fast print speeds of up to 8 inches per second (203 mm/s) with consistent clarity and precision. The WP-S2 supports label widths up to 4.25 inches and accommodates media lengths of up to 70 inches, making it versatile for a range of applications. Its visual window allows for easy media monitoring, while multiple connectivity options—USB, Serial, LAN, and optional Bluetooth/Wi-Fi—provide seamless integration into various systems.





Product Features

Fast & High-Resolution Printing
Equipped with 203 DPI resolution and a maximum print speed of 8 ips (203 mm/s), the WP-S2 ensures efficient, high-quality barcode and label output.



Direct Thermal Technology
Uses direct thermal printing—no ribbons required—ideal for fast, cost-effective printing of shipping labels, barcodes, and tags.

Wide Media Compatibility
Supports a maximum print width of 4.25 inches (108 mm) and media widths ranging from 1.56 to 4.7 inches (40–120 mm), making it flexible for various label sizes.

Extended Media Length Handling
Capable of printing labels as short as 0.39 inches and as long as 70 inches (1778mm), suitable for both compact and extended format labels.

Multiple Connectivity Options
Built with USB + Serial, USB + LAN, and USB + Serial + LAN configurations, with optional Bluetooth or Wi-Fi for wireless printing in modern setups.

Visual Window for Easy Monitoring
A transparent visual window on the printer body allows quick checking of label media levels without opening the device.

Compact Industrial Design
Space-efficient with dimensions of 220 × 187 × 96 mm, and weighing only 3.15 kg, the WP-S2 fits neatly into any workstation while offering industrial-grade durability.







Product Specifications

• Brand: Winpal
• Model: WP-S2
• Print Method: Direct Thermal
• Resolution: 203 DPI
• Max. Print Speed: Up to 8 ips (203 mm/s)
• Max. Print Width: 4.25 in. / 108 mm
• Media Width: 1.56–4.7 in. (40–120 mm)
• Media Length: 0.39–70 in. (10–1778 mm)
• Connectivity Options:
  • USB + Serial
  • USB + LAN
  • USB + Serial + LAN
  • Optional Bluetooth / Wi-Fi
• Visual Window: Yes
• Dimensions (D × W × H): 220 × 187 × 96 mm
• Weight: 3.15 kg
• Application Areas: Logistics, Warehousing, Retail, Manufacturing
