Fronius Solar Inverter Eco 27.0-3 27kw MPPT IP66 WIFI WLAN

Name: Fronius Solar Inverter Eco 27.0-3 27kw MPPT IP66 WIFI WLAN
Brand: Fronius
SKU: 17439
Availability: OutOfStock

Original price was: KSh 800,000.00.Current price is: KSh 500,000.00.

Out of stock

Category: Hybrid Solar Inverters Tag: Fronius Solar Inverter Eco 27.0-3 27kw MPPT IP66 WIFI WLAN in Kenya Brand: Fronius

Description

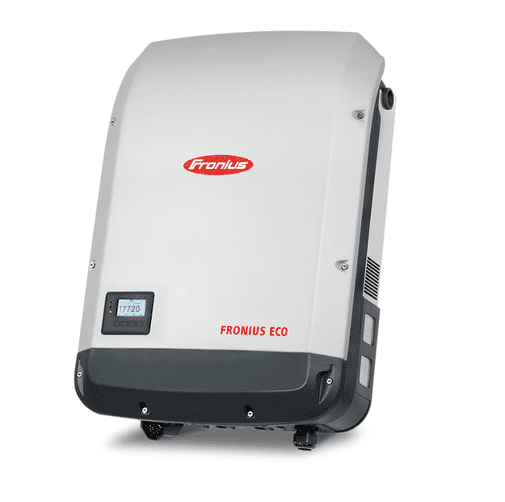

Fronius Solar Inverter Eco 27.0-3 27kw MPPT IP66 WIFI WLAN

The three-phase Fronius Fronius Solar Inverter Eco in power categories 25.0 and 27.0 kW perfectly meets all the requirements of large-scale installations. Thanks to its lightweight and SnapINverter mounting system, this transformerless device can be installed quickly and easily either indoors or outdoors. This Fronius Solar Inverter series sets new standards with its IP 66 protection class. In addition, its integrated all-pole string fuse holders and optional DC fuse mean that string collection boxes are no longer required.

INPUT DATA

Number of MPP trackers	1
Max. input current (Idc max)	44,2 A
Max. short circuit current, module array	71,6 A
DC input voltage range (Udc min – Udc max)	580 – 1000 V
Feed-in start voltage (Udc start)	650 V
Nominal input voltage (Udc,r)	580 V
MPP voltage range (Umpp min – Umpp max)	580 – 850 V
Usable MPP voltage range	580 – 850 V
Number of DC connections	6
Max. PV generator power (Pdc max)	37,8 kWpeak

OUTPUT DATA

AC nominal output (Pac,r)	25 kW
Max. output power (Pac max)	25 kVA
AC output current (Iac nom)	37,9 / 36,2 A
Grid connection (Uac,r)	3~ NPE 400/230, 3~ NPE 380/220 V
AC voltage range (Umin – Umax)	150 – 275 V
Frequency (fr)	50 / 60 Hz
Frequency range (fmin – fmax)	45 – 65 Hz
Total harmonic distortion	< 2 % 2=”“ =”“>
Power factor (cos φac,r)	0 – 1 ind./cap.

GENERAL DATA

Height	725 mm
Width	510 mm
Depth	225 mm
Weight	35,7 kg
Degree of protection	IP 66
Protection class	1
Overvoltage category (DC / AC) 1)	2 / 3
Night-time consumption	< 1 w 1=”“>
Inverter design	Transformerless
Cooling	Regulated air cooling
Installation	Indoors and outdoors
Ambient temperature range	~~25°C – 60°C~~
Permitted humidity	0 – 100 %
Max. altitude 2)	2.000 m
DC connection technology	6x DC and 6x DC screw terminals 2.5 – 16 mm²
AC connection technology	5-pin AC screw terminals 2.5 – 16 mm²
Certificates and compliance with standards	ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G99, UNE 206007-1, SI 4777, CEI 0-16, CEI 0-21

EFFICIENCY

Max. efficiency (PV – grid)	98,2 %
European efficiency (ηEU)	98,0 %
η at 5 Pac,r 3)	95,1 / 91,5
η at 10 Pac,r 3)	97,0 / 95,2
η at 20 Pac,r 3)	97,8 / 96,9
η at 25 Pac,r 3)	98,0 / 97,0
η at 30 Pac,r 3)	98,1 / 97,2
η at 50 Pac,r 3)	98,2 / 97,5
η at 75 Pac,r 3)	98,2 / 97,5
η at 100 Pac,r 3)	98,2 / 97,5 %
MPP adaptation efficiency	> 99,9 %

PROTECTION DEVICES

DC insulation measurement	Yes
Overload behavior	Operating point shift, power limitation
DC disconnector	Yes
Integrated string fuse holder	Yes

INTERFACES

WLAN / Ethernet LAN	Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
6 inputs and 4 digital inputs/outputs	Interface to ripple control receiver
USB (type A socket) 4)	Data logging, inverter update via USB flash drive
2x RS422 (RJ45 socket) 4)	Fronius Solar Net
Signaling output 4)	Energy management (floating relay output)
Datalogger and web server	Integrated
External input 4)	S0 meter connection / Evaluation of overvoltage protection
RS485	Modbus RTU SunSpec or meter connection
