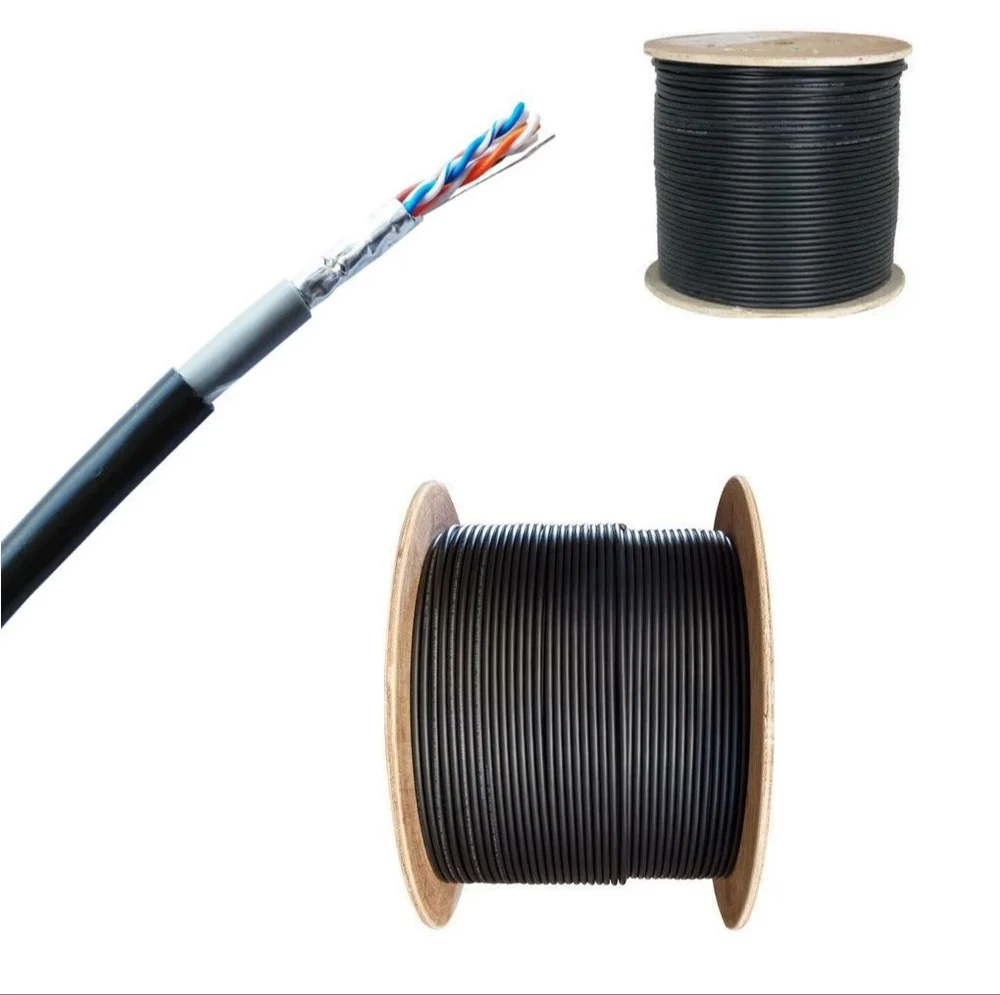

EaseNet Cat 6 FTP Outdoor Ethernet LAN Cable 305M – Shielded Network Cable in Kenya

EaseNet Cat 6 FTP Outdoor Ethernet LAN Cable (305M) is a premium shielded cable engineered for high-speed, interference-free outdoor networking. Designed with 23AWG solid bare copper conductors and aluminum foil shielding, this Cat6 Ethernet cable delivers seamless Gigabit performance with enhanced protection against EMI, crosstalk, and environmental stress.

Its Low Smoke Zero Halogen (LSZH) sheath ensures safety while providing durability for outdoor installations. Whether you’re deploying CCTV systems, PoE devices, enterprise LAN backbones, or broadband video transmission, this Cat 6 LAN cable in Kenya offers reliability and future-ready performance.

Key Features & Benefits

• High Bandwidth Capacity – Supports data rates up to 1Gbps and bandwidth of up to 4800 MHz for demanding applications.
• Shielded FTP Design – Full foil and braid construction minimize EMI and crosstalk, ensuring stable performance.
• Full Copper Conductors – Built with 23AWG solid bare copper for superior conductivity and minimal signal loss.
• Safe & Durable Sheath – LSZH jacket reduces harmful emissions while offering weather resistance for outdoor use.
• Enhanced Structure – Central ‘X’ filler, Mylar wrapping, and foil tape provide extra stability and protection.
• Versatile Applications – Suitable for voice, video, Fast Ethernet, Gigabit Ethernet, and broadband video.

Technical Specifications

Construction & Materials

• Conductor: 23AWG solid bare copper (8 cores, color-coded pairs)
• Shielding: Aluminum foil isolator + copper braid
• Insulation: PE foam with central ‘X’ separator
• Jacket Material: LSZH/PVC (outdoor-rated, grey)
• Outer Diameter: 7.7mm ± 0.2mm
• Length: 305 meters (1000 feet)

Electrical Properties

• Characteristic Impedance: 100 ± 15% Ω
• Conductor Resistance: ≤ 66.7 Ohm/km @ 20°C
• Resistance Unbalance: ≤ 5% /100m
• Mutual Capacitance: 13.6 pF/ft (nominal)
• Insulation Resistance: ≥ 100MΩ/km
• Withstand Voltage: 30V

Environmental Ratings

• Flame Rating: CM
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 60°C
• Humidity: 10%–90% non-condensing

Common Applications

• Outdoor structured LAN cabling
• CCTV & IP surveillance networks
• Enterprise Ethernet backbones
• Broadband video transmission (550 MHz)
• VoIP and Power over Ethernet (PoE) systems
• Inter-building LAN connectivity

Buy EaseNet Cat6 Outdoor Ethernet LAN Cable in Kenya – 305M Shielded FTP Network Cable

The EaseNet Cat6 FTP Outdoor Ethernet LAN Cable is one of the most durable and high-performance Cat6 Ethernet cables in Kenya, offering reliable outdoor connectivity for professional installations. Backward-compatible and future-ready, it also complements Cat6A Ethernet cable systems for higher scalability.

Order today from TDK Tech Store and enjoy best prices, nationwide delivery, and trusted quality.
