Cat6A Shielded RJ45 Connector Metallic

KSh 100.00

Category: RJ45 Connectors

Description

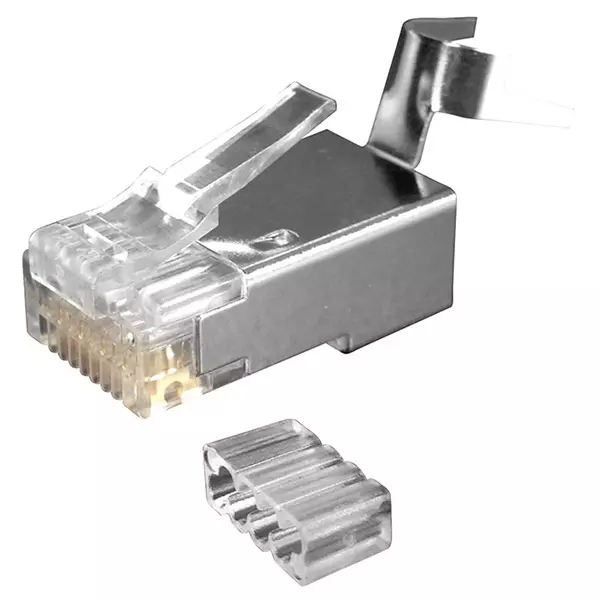

Cat6a RJ45 Shielded (STP) Modular Plugs with Loading Bar for Solid Cable

RJ45 Cat6A plug — Cat6A Connectors with Double Assembly Design Gold Plated Shielded RJ45 Modular Plug for 23AWG Solid and Stranded Cat7 Cat6A Cable 50u Gold Plated

Cat t6a RJ45 modular plug is perfect for terminating cat6a solid cables. These modular plugs are manufactured from high-impact clear polycarbonate to withstand everyday wear and tear, and the contacts are 50 micron gold for optimum signal transmission. In addition, a two-piece design with a loading bar ensures easy and accurate assembly.

Cat6a RJ 45 connector Specifications

Product Type	Modular Plug	Connector	RJ45 Male
Cable Type	Cat6a STP	Data Rate Support	10GBase-T
Compatibility	Solid Cables	Package	50pcs/pack
Wire Gauge Supported	23AWG	Wiring Scheme	T568A & T568B
Loading Bar	Yes	Material	Polycarbonate
Operating Temperature	-10°C to 60°C (14°F to 140°F)	Approvals	RoHS Compliant

The modular plug is compatible with 3 load bars (AKA insert) in 3 different ODs of insulations: 1.2 mm, 1.5 mm, and 1.6 mm.

Each of the inserts is made for a wide range of wire insulation diameters. If you have trouble finding connectors for a large OD cable, this is the best solution that allows cables in various sizes to fit into the modular plugs.

OD of Load Bar	Suitable OD of Wire Insulation
1.2 mm	1.05 mm ~ 1.15 mm
1.5 mm	1.35 mm ~ 1.45 mm
1.6 mm	1.45 mm ~ 1.55 mm

Features

The gold plating on each of the contact blades is inspected with the X-Ray machine beforehand, and its thickness can be customized from 3 microns to 50 microns. The staggered position of the wires (4 up 4 down) is a user-friendly and efficient design for quick assembly.
● RoHS compliant.
● Follow FCC Part 68 standard.
● Passed the reliability test that meets the mechanical, electrical, and environmental standards based on IEC 60603-7.
