Sale!

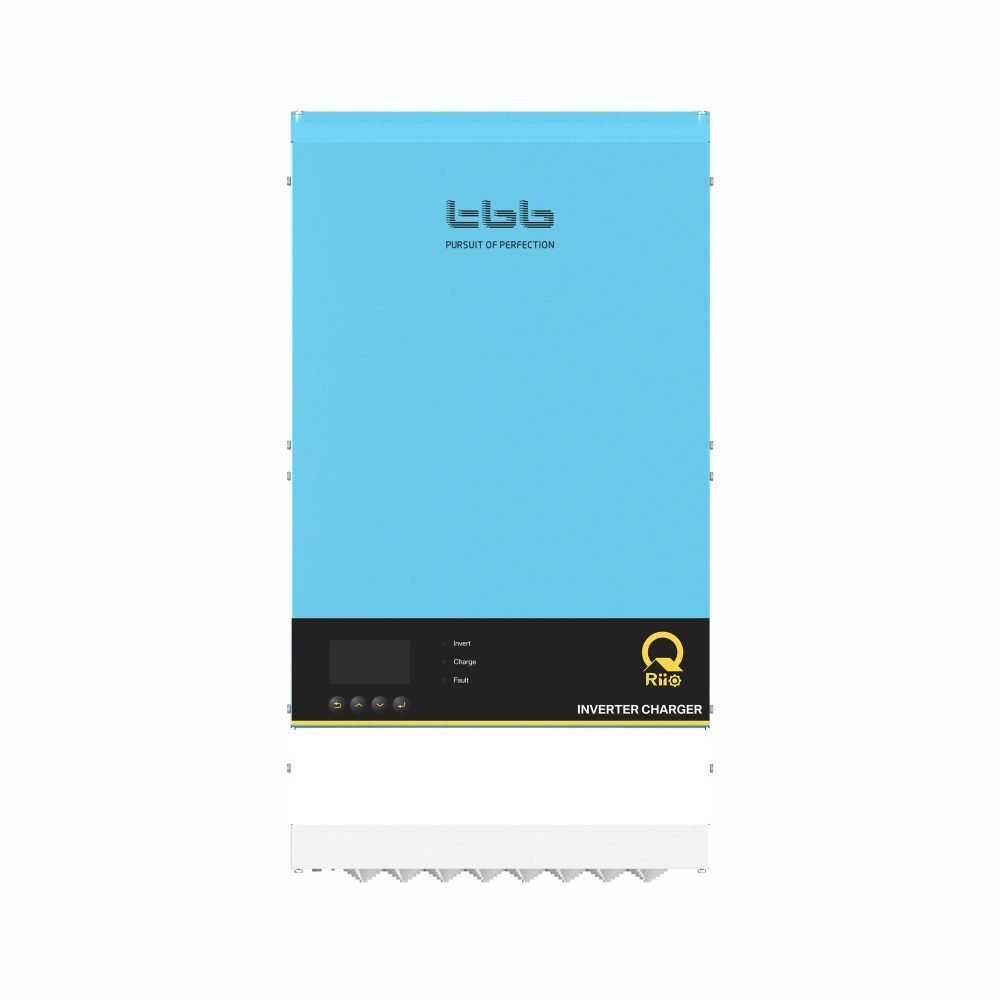

5000 Watts 48V TBB RiiO Sun Hybrid Solar Inverter Charger

Original price was: KSh 200,000.00.Current price is: KSh 144,000.00.

Category: Hybrid Solar Inverters Brand: TBB

5000 Watts 48V TBB RiiO Sun Hybrid Solar Inverter Charger

5000 Watts 48V TBB Hybrid Solar Inverter Charger can be used for generator hybrid system. With the innovative function of Power Control and Power Assist, it can be used to work with a generator or a limited AC source. Kinergier Pro can automatically adjust its charging current avoiding the generator or grid to be overloaded. In case of high power requirement appeared, it can work as a supplement source to a generator or grid. As the result, it could dramatically improve fuel efficiency and decrease the size of the generator as well.

5000 Watts 48V TBB RiiO Sun Hybrid Solar Inverter Charger Specs

All in one, plug-and-play design for easy installation

Applicable for DC coupling system, solar hybrid system, and power backup system

The generator power assist function enables small generators to handle big loads

Save 45% energy at max under the built-in ECO Mode (30% on average)

Load boost function for running the heavy duty loads

Extremely high inverter efficiency up to 94%

Extremely high MPPT efficiency up to 98%

Harmonic distortion<2%

Extremely low self-consumption power

High performance designed for all kinds of inductive loads

TBB premium II battery charging management

Built-in battery SOC estimation

Equalization charging program available for flooded and OPZS battery

Lithium battery charging is available and fully programmable by APP

Remote monitoring and control via NOVA online portal

Product Description

Product Parameters

Model	RiiO 2KVA-M	RiiO 3KVA-M	RiiO 2KVA-S	RiiO 3KVA-S	RiiO 4KVA-S	RiiO 5KVA-S	RiiO 6KVA-S
Product Topology	Transformer based
Generator Power Assist	Yes
AC input voltage range(VAC)	175~265
AC input Frequency range(Hz)	45~65
AC input Current (transfer switch) (A)	32				50
Inverter
Nominal battery voltage (V)	24		48
Input voltage range (V)	21-34		42-68
AC output voltage(VAC)	220/230/240 ± 2%
AC output Frequency(Hz)	50/60 ± 0.1%
Harmonic distortion	<2%
Load Power factor	1
Cont. output power at 25°C (VA)	2000	3000	2000	3000	4000	5000	6000
Max Output power at 25°C (W)	2000	3000	2000	3000	4000	5000	6000
Peak power (3sec) (W)	4000	6000	4000	6000	8000	10000	12000
Surge	300%
Maximum efficiency	91%	91%	93%	93%	93%	94%	94%
Zero load power (W)	13	17	13	17	19	22	25
Charger
Charge voltage ‘absorption’ (V)	28.8		57.6
Charge voltage ‘float’ (V)	27.6		55.2
Battery types	AGM / GEL / OPZV / Lead-Carbon / Li-ion / Flooded/Traction/TBB SUPER-L
Max AC charge current (A)	40	70	20	35	50	60	70
Temperature compensation	YES
General data
Output (AC Out) Current (A)	32					50
Transfer time	4ms (<15ms in Weak AC source Mode)
Protection	a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) input voltage out of range g) input voltage ripple too high h) Fan block
General purpose com. Port	RS485 (GPRS, WLAN optional with kinergy)
Operating temperature range	-20˚C to 65˚C
Relative humidity in operation	95% without condensation
Altitude (m)	2000
Standards
Safety	EN-IEC 62477-1
EMC	EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-3-11,EN61000-3-12
