11kw invt three phase inverter

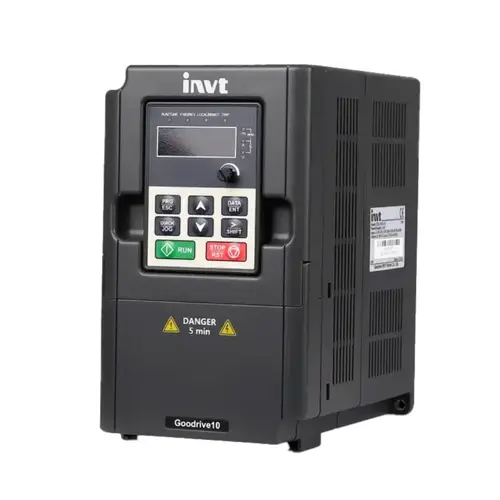

Brief introduction of Goodrive 10 inverters

Goodrive 10 Series min-economy inverters are designed for the small power OEM application marker. With the function of vectorization V/F control and PID function, multi-step speed, DC braking and Modbus communication, and so on, the inverter has more advantages but occupied less installation space.

Features

1. V/F control

2. Natural cooling (for the applications with cotton and dust)

3. Mini structure, less installation space

Rated Specifications

Model		Output power (kW)	Input current (A)	Output Current (A)
Single-phase 230V	GD10-0R2G-S2-B	0.2	4.9	1.6
	GD10-0R4G-S2-B	0.4	6.5	2.5
	GD10-0R7G-S2-B	0.75	9.3	4.2
	GD10-1R5G-S2-B	1.5	15.7	7.5
	GD10-2R2G-S2-B	2.2	24	11
Three-phase 230V	GD10-0R2G-2-B	0.2	1.9	1.6
	GD10-0R4G-2-B	0.4	2.7	2.5
	GD10-0R7G-2-B	0.75	4.9	4.2
	GD10-1R5G-2-B	1.5	9	7.5
	GD10-2R2G-2-B	2.2	15	11
Three-phase 400V	GD10-0R7G-4-B	0.75	3.2	2.5
	GD10-1R5G-4-B	1.5	4.3	4.2
	GD10-2R2G-4-B	2.2	7.1	5.5

Technical Specifications

Function	Specifications
Input voltage (V)	230V: input voltage range: single phase or three phases 230V 10%
	400V; input voltage range: three-phase 400V 15%
Input frequency (Hz)	50Hz or 60Hz Allowed range: 47~63Hz
Output voltage (V)	Equal to input voltage with the deviation of less than 5%
Output frequency(Hz)	50Hz/60Hz, Fluctuation range: 5%
Control mode	V/f control
Maximum output frequency	200Hz
Adjustable-speed ratio	0.111111111
Overload capability	150% of rated current: 1 minute
Analog input resolution	<=20mV
Digital input resolution	<=2ms
Analog input/output	Input 1.0~10V or 0-20mA, output; 1.0~10V or 0~20mA
Digital input/output	5 channels digital input, 1 Y terminal output, and 1 programmable relay output
Communication	MODBUS
Mountable mode	Wall mounting
The temperature of the running environment	-10~500C, derate above 400C
Cooling	Single/three-phase 230V 0.2-0.75kW natural cooling
	Single/three-phase 230V 1.5-2.2kw, three-phase 400V 0.75-2.2kw
Fault protection	Over-current, overvoltage, under voltage, over temperature, overload, and other protections
Braking unit	Only standard for GD10-B

For more Specifications 11kw invt three phase inverter
